Crane Wheel Design and Function in Industrial Crane Systems
A crane wheel is a key component in crane travel systems, responsible for supporting the crane structure and enabling smooth movement along rails. Crane wheels are widely used in overhead cranes, gantry cranes, and other industrial lifting systems.
Understanding crane wheel design and application helps ensure stable crane operation and long-term reliability.
What Is a Crane Wheel?
A crane wheel is a load-bearing wheel installed on crane end carriages or traveling mechanisms. It transfers crane loads to the rail while allowing controlled movement of the crane system.
Main Functions of a Crane Wheel
Load Bearing and Distribution
Crane wheels distribute the crane and lifted load evenly across the rails, reducing stress on the crane structure.
Guided Crane Movement
Proper crane wheel alignment ensures smooth crane travel and minimizes rail wear.
Stability During Crane Operation
High-quality crane wheels help prevent derailment and vibration during crane operation.

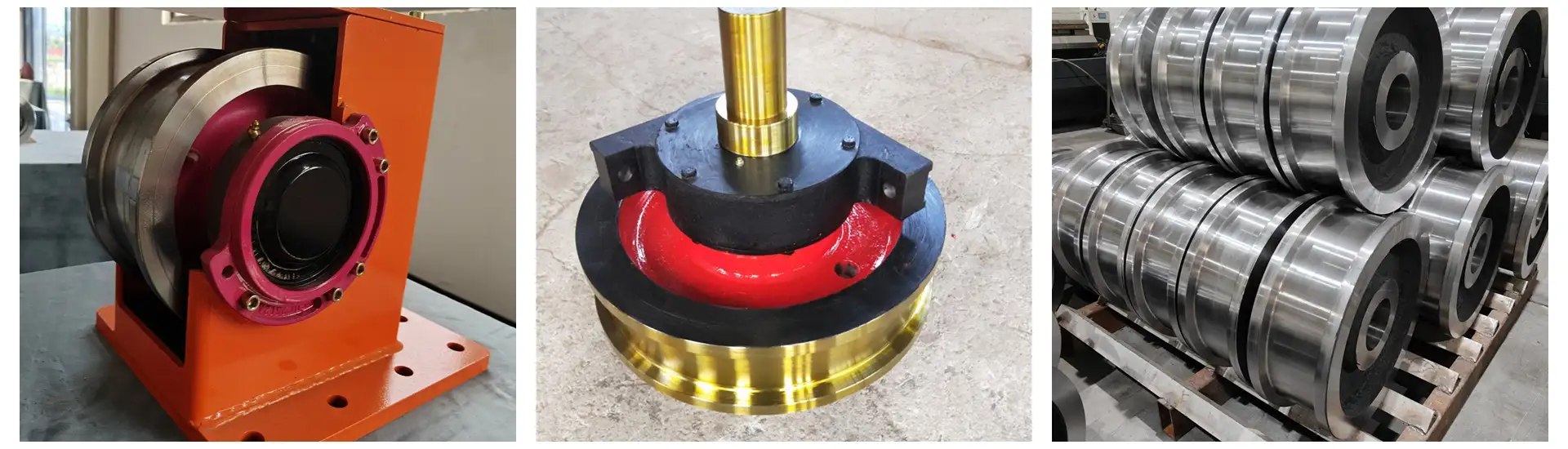

Common Types of Crane Wheel
Flanged Crane Wheel
Flanged crane wheels provide lateral guidance and are widely used in standard crane rail systems.
Double Flanged Crane Wheel
Double flanged wheels are used in applications requiring higher lateral stability.
Forged Crane Wheel
Forged crane wheels offer high strength and wear resistance for heavy-duty crane systems.
Crane Wheel Applications in Crane Systems
Overhead Crane
In overhead cranes, crane wheels are mounted on end carriages to enable bridge travel.
Gantry Crane
Gantry cranes rely on crane wheels for stable ground-level travel across long spans.
Crane Trolley Systems
Crane wheels are also used in trolley travel mechanisms for load positioning.
NYBON Crane
Customizable Solutions – Nybon Crane offers tailor-made cranes to meet specific requirements, including capacity, speed, and mounting options.
Standard Crane Wheel Parameters (Reference)
| Item | Typical Range |
|---|---|
| Wheel Diameter | 200 – 1000 mm |
| Material | Forged Steel / Cast Steel |
| Wheel Type | Single Flange / Double Flange |
| Brake System | Regular testing |
| Application | Overhead / Gantry Crane |
| Surface Treatment | Heat Treated |
✅ Crane wheels can be customized based on load, rail type, and working conditions.
Frequently Asked Questions (FAQ)
Q1: What is the function of a crane wheel?
A crane wheel supports the crane load and enables smooth travel along crane rails.
Q2: How long does a crane wheel last?
Service life depends on load, duty cycle, and maintenance practices.
Q3: Can crane wheels be replaced individually?
Yes. Individual crane wheels can be replaced without changing the entire travel system.
Q4: Are crane wheels standardized?
Some dimensions are standardized, but many crane wheels are customized.
Q5: Does Nybon Machinery provide customized crane wheels?
Yes. Nybon Machinery supplies customized crane wheels for different crane systems.
