What Is a European Type Hoist?

The European-type hoist, also known as the Euro-style electric hoist, FEM electric hoist, or ND model wire rope hoist, is a new generation of lifting equipment featuring compact structure, smooth operation, low headroom design, and high lifting performance. Compared with traditional CD/MD hoists and chain hoists, European hoists offer superior safety, efficiency, and overall durability, making them ideal for modern workshops and industrial lifting needs.

NYBON provides both European wire rope hoists and low-headroom electric chain hoists, available in standard models as well as fully customized versions for special lifting environments. European-type hoists are widely used in overhead crane systems and gantry cranes where space optimization and performance are critical.

single girder overhead crane european type hoist

Single Girder European Type Hoist

The Single Girder European Type Hoist is a compact, low-headroom lifting device designed for light to medium-duty applications. It integrates high-efficiency motors, a smooth frequency control system, and an optimized structure that helps reduce wheel load and increase usable lifting height. This hoist is ideal for single-girder cranes or workstation cranes where space-saving and reliable performance are essential.

Key Features

  • Compact, Low-Headroom Design for better space utilization

  • Energy-Efficient Operation with low noise and smooth speed control

  • Easy Maintenance thanks to a modular design

  • Wide Applications across manufacturing, assembly lines, and logistics

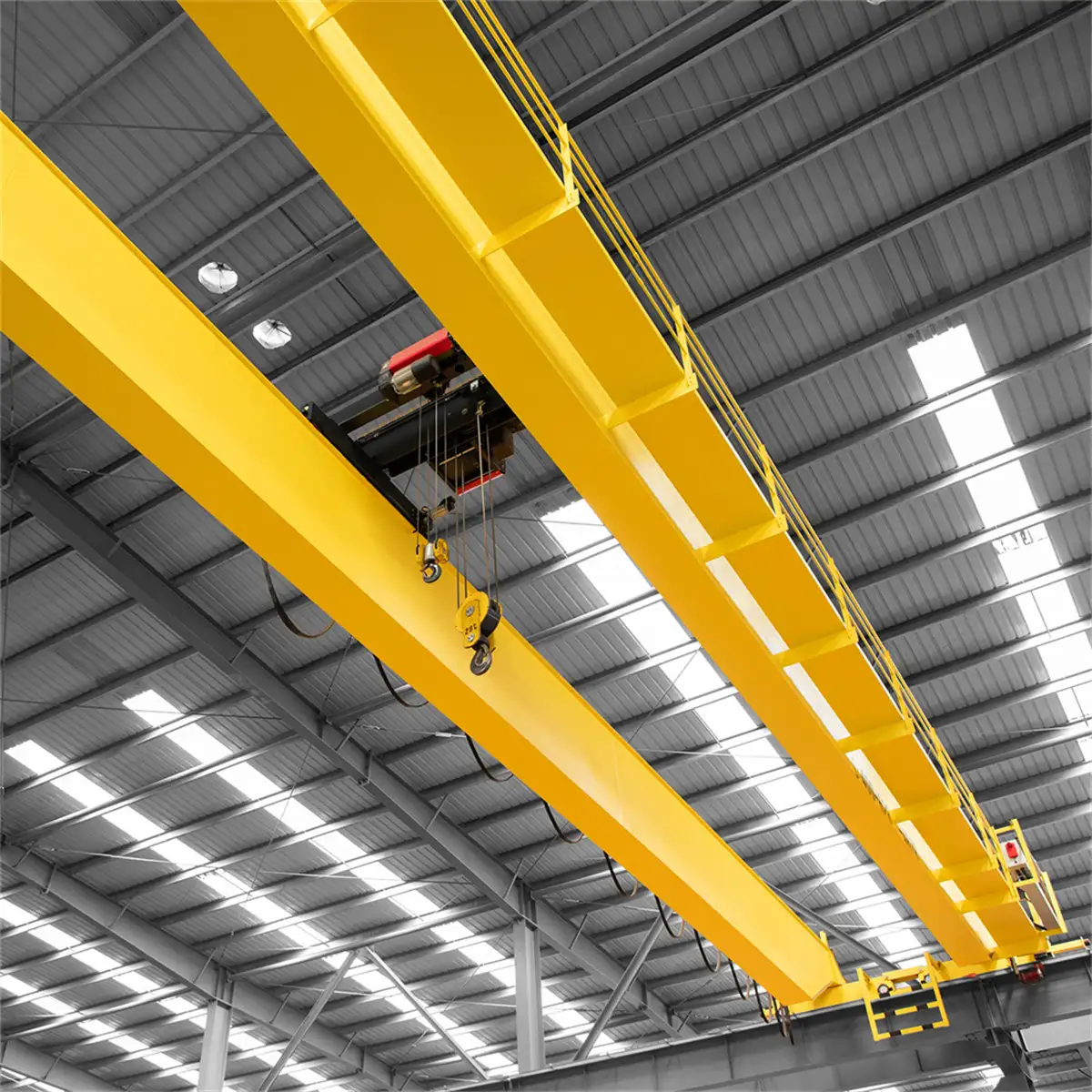

Double Girder Overhead Crane Hoist

Double Girder European Type Hoist

The Double Girder European Type Hoist is built for heavier loads and continuous-duty industrial operations. Installed between two girders, it offers higher lifting height, improved stability, and stronger structural performance. It is suitable for workshops that require frequent lifting and a long service life.

Key Features

  • Higher Capacity & Stability for heavy-duty lifting

  • Maximum Hook Height due to double-girder installation

  • High Working Class (M5–M7) suitable for intensive use

  • Optional Customization, such as explosion-proof, anti-corrosion coating, or smart monitoring

European Wire Rope Hoist (ND/NR Model)

Suitable for medium to heavy-duty lifting applications, commonly installed on single girder bridge cranes, European gantry cranes, monorail beams, and workstation cranes.

  • High-efficiency hoist motor with S3/S4 duty&Frequency inverter for stepless speed control

  • Low-headroom structure for maximum lifting height&Precision load positioning

European Low Headroom Hoist

Designed for workshops where headroom is limited.
Compared to standard CD/MD hoists, the low-headroom Euro hoist reduces dead space by 20–40%.

Ideal for:

  • Low ceiling workshops

  • Warehouse cranes

  • Factory modernization upgrades

European Electric Chain Hoist

A lightweight yet high-performance lifting solution widely used in assembly lines, workstation cranes, and precision lifting tasks.

Optional configurations:

  • Fixed type

  • Motorized trolley & Push-pull trolley

  • Low-headroom chain hoist

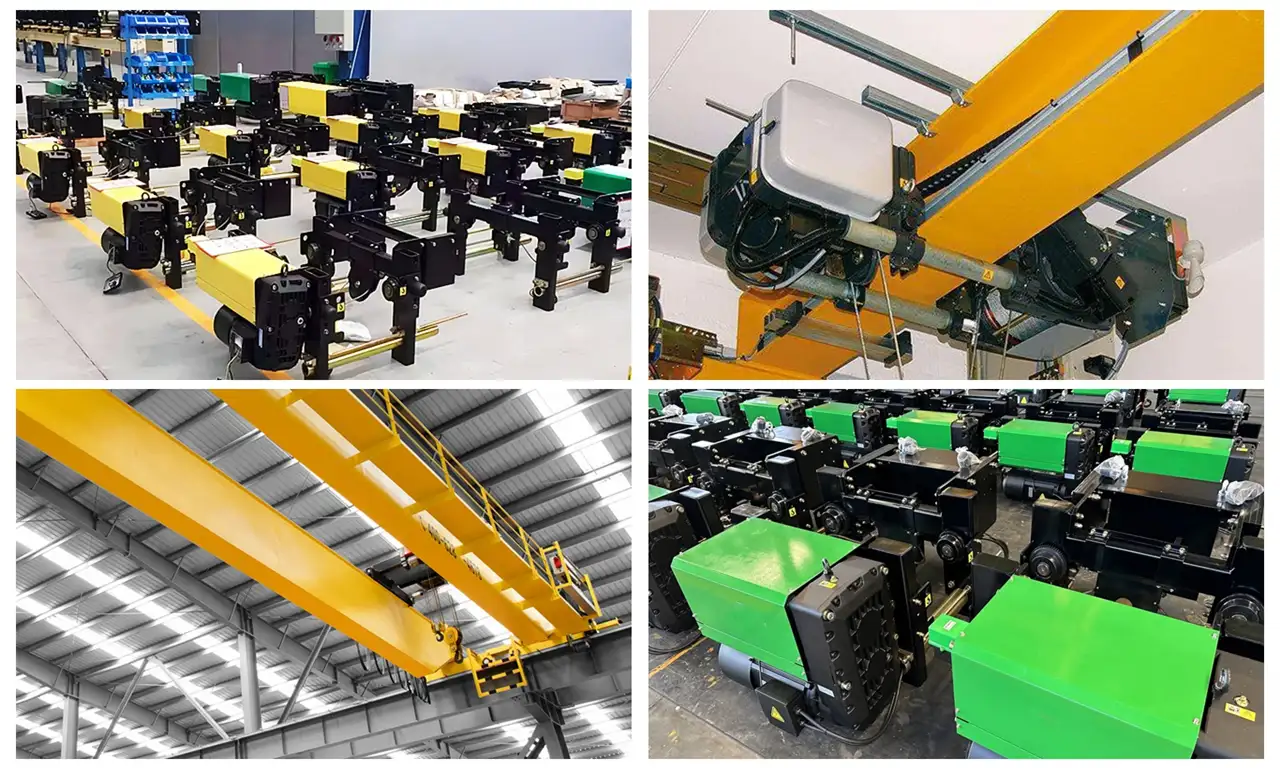

Marine Folding Crane Boom Telescopic Jib Crane

Customized European Hoist Solutions

NYBON specializes in custom FEM/DIN hoists designed to fit special working conditions.

Custom Options:

  • Explosion-proof hoist

  • Stainless steel hoist for food or chemical plants

  • Ultra-low headroom hoist & High lifting speed or dual-speed hoist

  • Special-duty hoists up to 50 tons

Technical Specifications (General Range)

Item General Range
Lifting Capacity 1–20 tons (custom up to 50 tons)
Lifting Height 6–30 meters (customizable)
Lifting Speed 0.8–8 m/min (inverter adjustable)
Traveling Speed 2–20 m/min
Duty Classification FEM 2M / FEM 3M / ISO M5 / M6
Power Supply 380V/400V/415V 50Hz or customized
Hoist Type Wire rope / chain / low headroom / custom
Control Mode Cabin, remote control, or local control

Customization: All crane systems can be designed based on customer requirements, working environment, and material type. We also provide complete crane kits and components, including European hoists, end beams, crane wheels, and control systems.

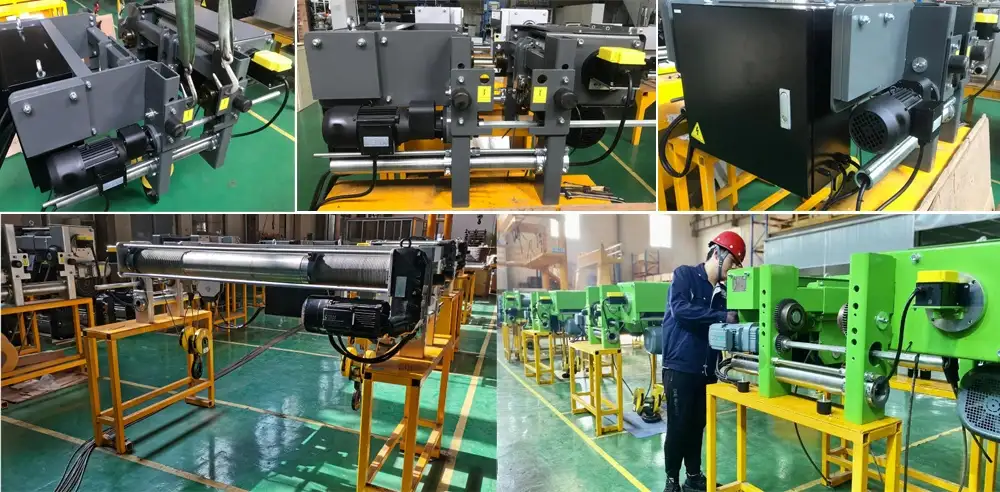

Heavy Duty Electric Hoists

Advantages of NYBON European Hoists

  • 30–40% lighter structure compared with traditional hoists

  • Inverter control for stable and accurate lifting

  • High efficiency with lower power consumption

  • Low-maintenance gearbox with sealed lubrication

  • Long service life under FEM/DIN standard classification

  • Reduced noise level for operator comfort

  • Modular components for easy installation and repair

Applications

  • Manufacturing plants

  • Steel and metal workshops

  • Automotive production lines

  • Machinery assembly workshops

  • Warehousing and logistics

  • Aerospace and precision industries

  • Cleanroom or sensitive environments (customized)

Why Choose NYBON Machinery?

  • Strict quality control & premium components

  • Engineering support for crane system integration

  • Reliable performance for intensive industrial use

  • Competitive price compared to European brands

  • Fast delivery and global after-sales support

nybon cranes

Global Crane Solutions

Built to Last

Customized Solutions

From overhead cranes to electric hoists, our products are designed to match your specific lifting requirements.

Reliable Manufacturing

Every crane is produced under strict quality standards, ensuring stable performance and long service life.

Global Service

With decades of export experience, Nybon Machinery provides professional support for clients worldwide.

FAQ – European Type Hoists

1. What makes a European hoist different from a traditional CD/MD hoist?

A European hoist follows FEM/DIN standards, offering a much more compact structure, lower noise, inverter-based control, and higher duty cycles. Compared with CD/MD hoists, it delivers smoother operation, longer lifetime, and greater energy efficiency, making it ideal for modern industrial lifting systems.

2. Is a European hoist suitable for high-duty or continuous lifting applications?

Yes. European hoists are specifically designed for frequent lifting, precise load positioning, and demanding industrial applications. The motors, brakes, and gearbox systems are engineered for long service life under high-duty conditions, ensuring reliable performance even in multi-shift factories.

3. Can the hoist be customized for special environments?

Absolutely. We offer explosion-proof models, stainless-steel options, anti-corrosion coatings, cleanroom hoists, and specialized low-noise versions. Our engineering team can adjust lifting speed, duty class, hoist type, and control mode to match any unique working environment.

4. What is the typical lifting capacity of a European wire rope hoist?

Standard models cover 1–20 tons, but NYBON can design customized European hoists up to 50 tons or even higher, depending on the application. For heavier loads, we also offer European open winch systems.

5. What kind of maintenance is required?

European hoists require minimal maintenance due to their sealed gearbox, efficient motor design, and advanced brake systems. Regular inspection of wire ropes, limit switches, and electrical components ensures optimal performance and long lifespan.

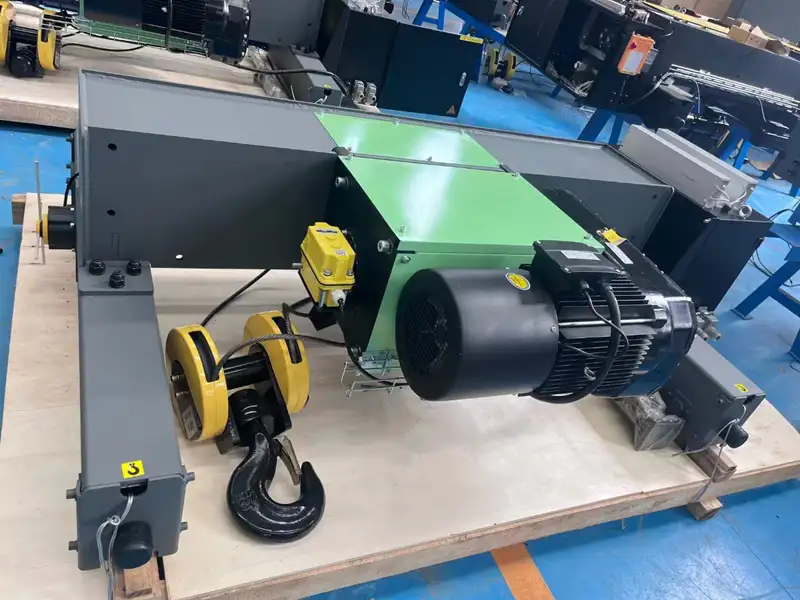

European Type Double Girder Electric Wire Rope Hoist

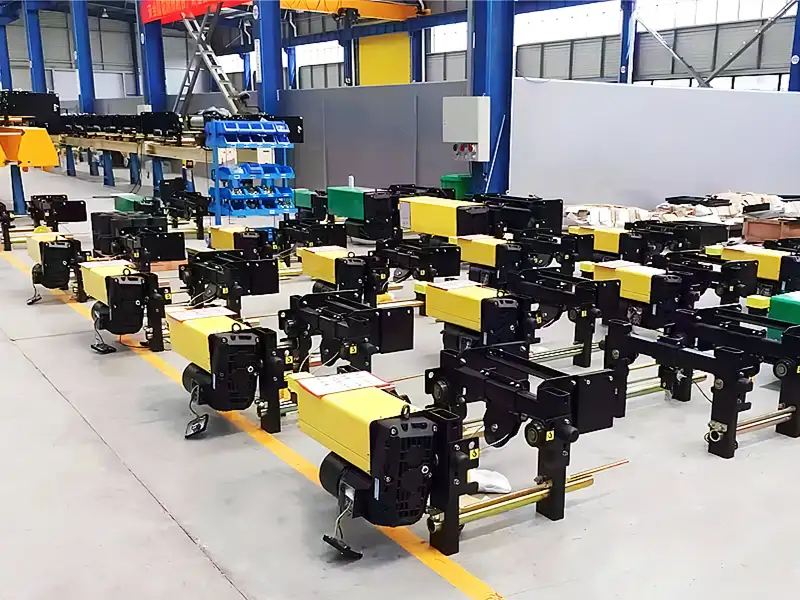

European Standard Electric Hoist Under Test

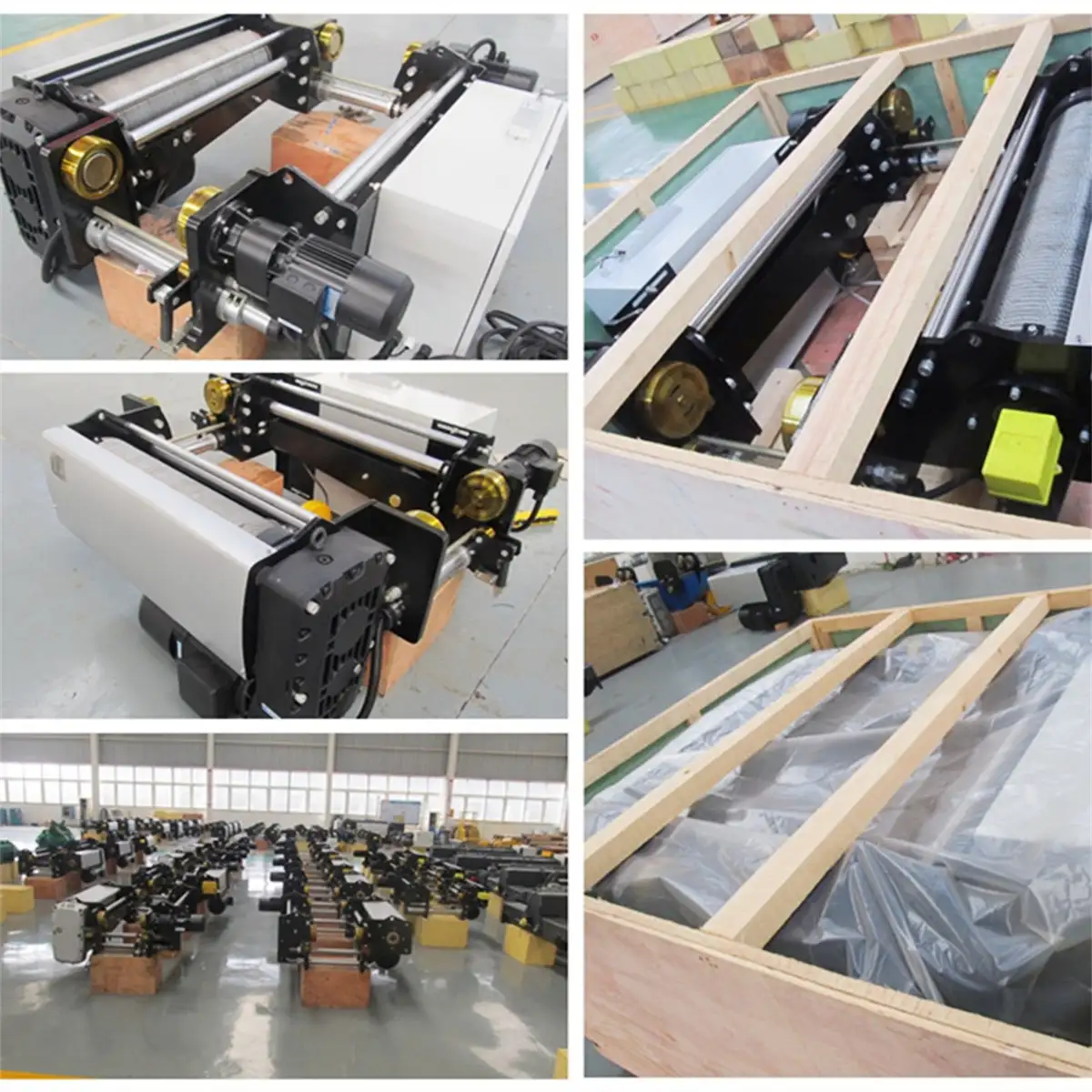

Heavy Duty European-style Electric Hoist
