A free-standing jib crane, also known as a column-mounted jib crane or pillar jib crane, is a highly flexible and reliable lifting solution widely used in workshops, warehouses, machining centers, production lines, and maintenance areas. With a rotation range up to 360°, optional chain hoist or wire rope hoist, and customizable lifting capacity from 0.5 ton to 10 tons, NYBON jib cranes provide efficiency, stability, and ease of installation.

Types of Industrial Jib Cranes

mobile jib crane on wheels

Mobile Jib Crane on Wheels

(Portable Jib Crane / Mobile Floor Mounted Jib Crane)

  • Fully mobile design with built-in wheels for easy repositioning in workshops or repair areas.

  • Provides 360° rotation, ensuring complete material handling coverage.

  • Supports 1–2 tons, customizable up to 5 tons depending on application needs.

  • Compatible with electric chain hoist or manual hoist.

  • Ideal for multi-station lifting, temporary areas, and equipment maintenance.

BZD 2T Floor Mounted Jib Crane

BZD 2 Ton Floor Mounted Jib Crane

(Column Mounted Jib Crane / Pillar Mounted Jib Crane)

  • Heavy-duty BZD type pillar jib crane capable of lifting up to 2 tons.

  • Features an overhead tie-rod bracing structure for extended outreach and stability.

  • Offers manual or motorized slewing with optional 360° rotation.

  • Can be equipped with wire rope hoist or electric chain hoist.

  • Ideal for machining centers, assembly lines, loading bays, and manufacturing workshops.

500kg Workshop Jib Crane

500kg Workshop Jib Crane

(Light-Duty Jib Crane for Workshops)

  • Compact design suitable for small to medium-sized workshops and workstation lifting.

  • Capacity 500 kg, customizable to 1 ton.

  • Smooth rotation from 270° to 360° depending on installation.

  • Equipped with electric chain hoist for fast and efficient handling.

  • Perfect for light assembly tasks, tool handling, mold lifting, and daily workshop operations.

Workshop Cantilever Jib Crane

Workshop Cantilever Jib Crane

(Low Headroom Cantilever Jib Crane / Pillar Jib Crane)

  • Cantilever boom design provides maximum lifting height in low-ceiling workshops.

  • No tie rods required—ideal where headroom is limited.

  • Lifting capacity from 500 kg to 2 tons, customizable up to 5 tons.

  • Smooth and stable slewing mechanism with precise load control.

  • Suitable for CNC machining areas, workshop production cells, and fabrication zones.

Customized Industrial Jib Cranes

  • Custom Lifting Capacity—From 100 kg to over 20 tons, engineered for both light-duty and heavy-duty industrial tasks.

  • Arm Length & Outreach—Adjustable 2–12 meters, depending on workshop layout, column strength, and application.

  • Rotation Angle Options—180°, 270°, 360°, or restricted rotation based on safety requirements.

  • Hoist Selection—Electric chain hoist, wire rope hoist, low-headroom hoist, explosion-proof hoist, or specialized lifting devices.

  • Mounting Types—Floor-mounted, foundation-mounted, column-mounted, wall-mounted, or mobile versions with wheels.

  • Low Headroom & High Headroom Designs—Tailored to workshops with limited vertical clearance or the need for maximum lifting height.

  • Special Operating Conditions—Outdoor use, marine environments, corrosive atmospheres, high temperature workshops, or cleanroom conditions.

  • Free-standing jib cranes are widely used alongside overhead cranes and gantry cranes to handle localized lifting tasks.
  • We also supply crane kits and components for jib crane manufacturing and upgrading projects.

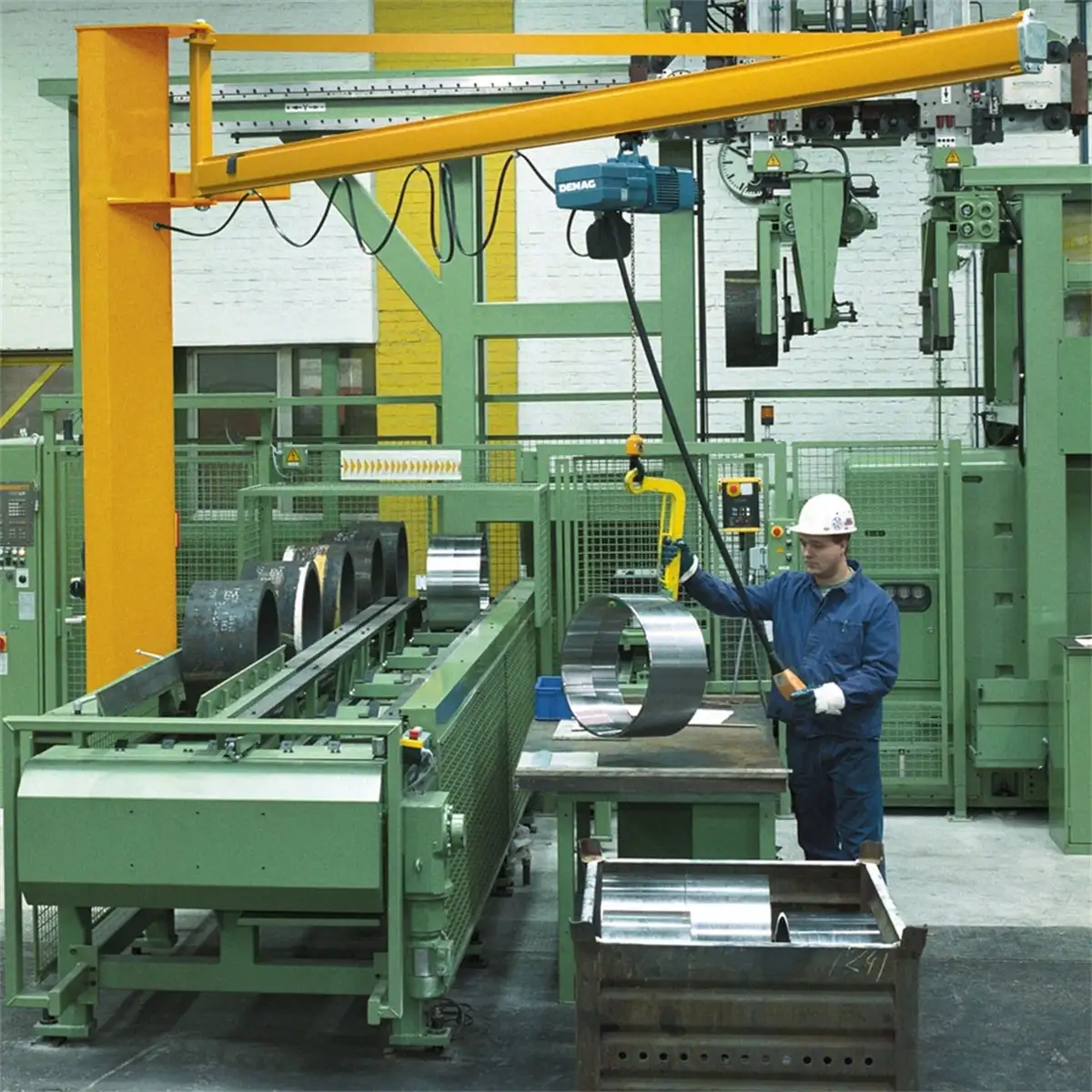

Workshop Remote Control Jib Crane

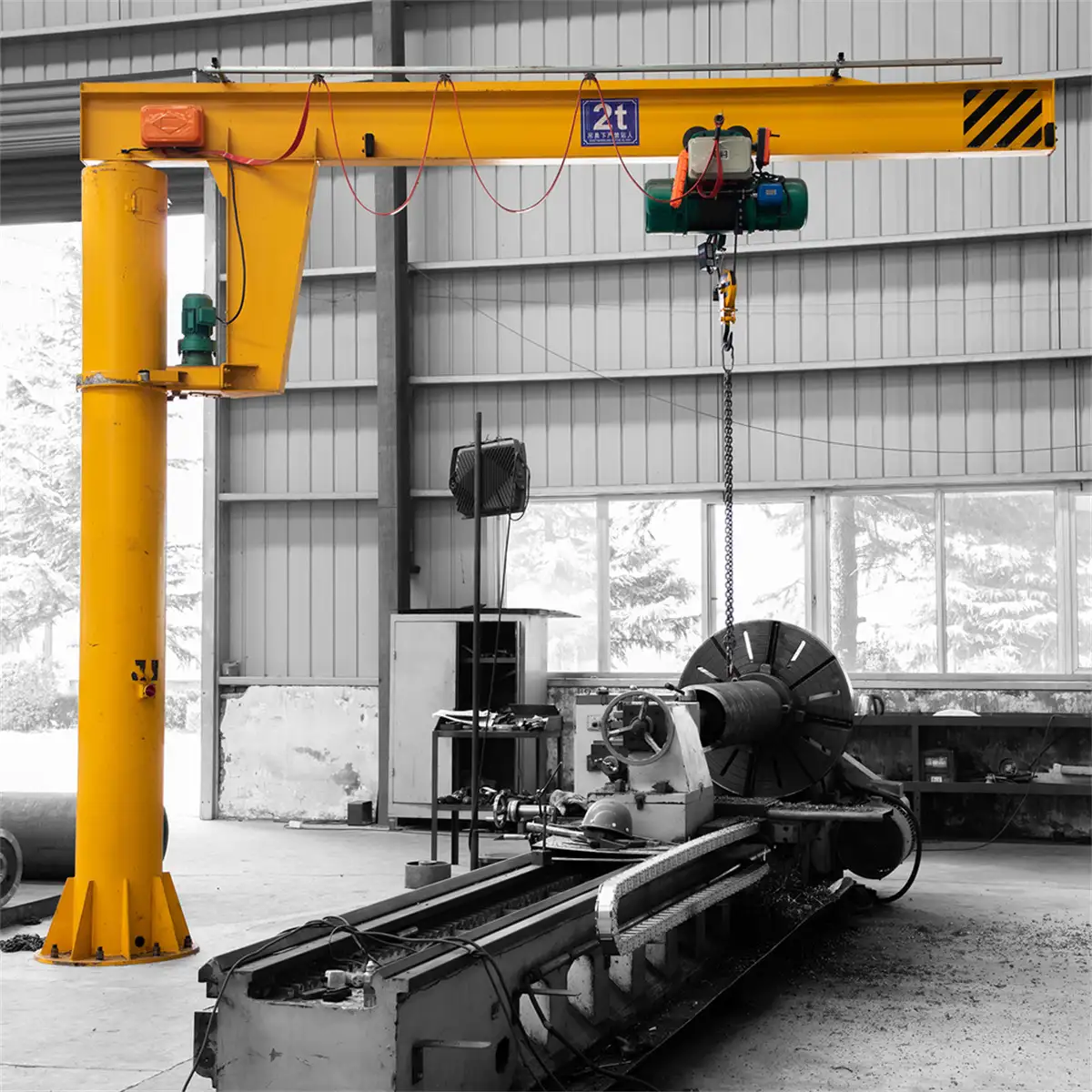

Pillar Crane

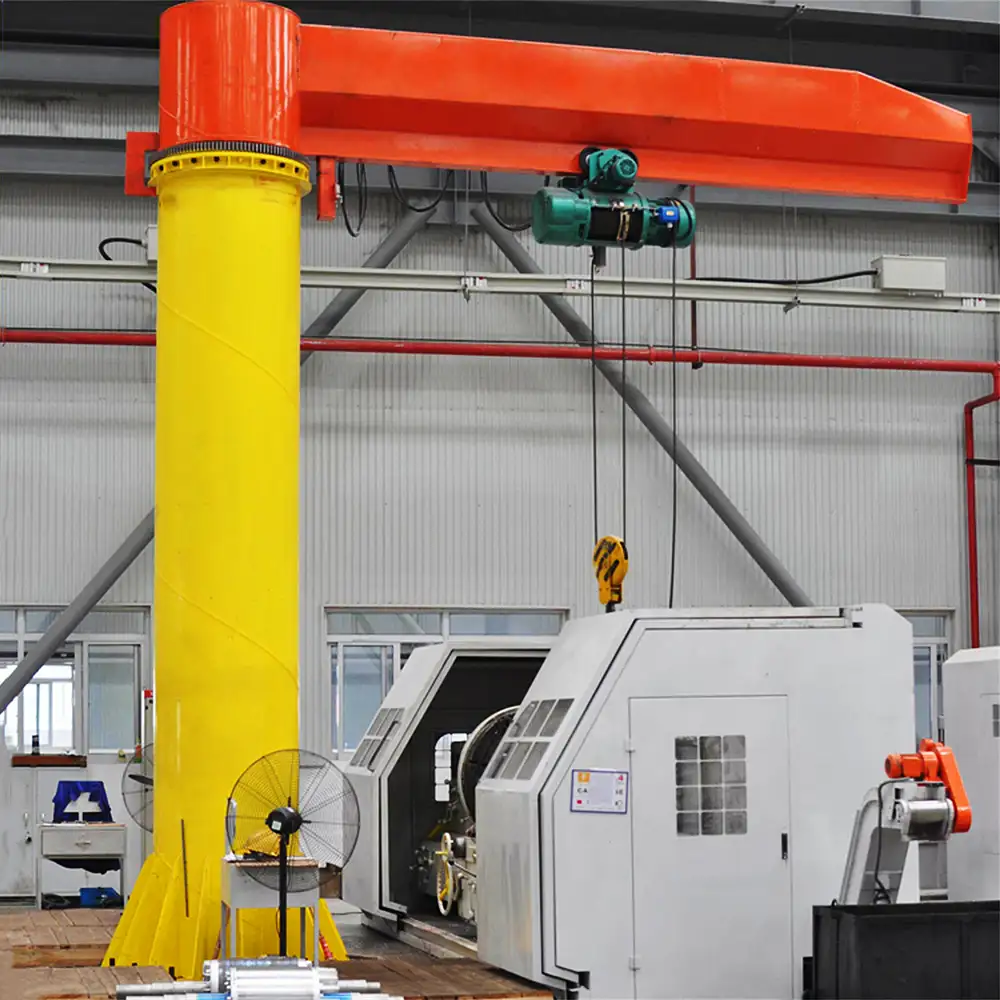

Wire Rope Hoist Jib Crane

Free Standing Jib Crane Specifications

Specification Item  Range
Capacity  0.5 ton – 10 tons (custom up to 20 tons)
Jib Arm Length 2 m – 8 m
Rotation Angle 180° / 270° / 360°
Lifting Height 3 m – 8 m (custom up to 12 m)
Hoist Type Electric Chain Hoist / Wire Rope Hoist
Slewing Type Manual Slewing / Motorized Slewing
Power Supply 380V/400V/415V/440V 3-Phase
Installation Type Base-plate mounted / Embedded foundation / Mobile base
Applications Workshop, warehouse, factory, machining, assembly

Customization: All crane systems can be designed based on customer requirements, working environment, and material type.

Advantages of NYBON Free Standing Jib Cranes

  • 360° full rotation for complete workspace coverage (custom ranges: 180°, 270°, 360°).

    Fast installation due to simple pillar-mounted or base-plate structure.

    Space-saving design, perfect for workshops with limited operating space.

    High flexibility with chain hoist, wire rope hoist, manual slewing, or motorized slewing options.

    Low-maintenance structure with durable steel construction for long service life.

    Customizable capacities from 0.5T to 10T (higher available upon request).

    Suitable for both indoor and outdoor use, depending on client requirements.

Applications of Free Standing & Column Mounted Jib Cranes

  • Workshops and production lines

  • CNC machines and machining centers

  • Warehouse loading/unloading zones

  • Mold handling and equipment assembly

  • Maintenance and repair stations

  • Fabrication shops and metalworking plants

  • Small lifting tasks where overhead cranes are not available

  • Industrial automation workstations

  • NYBON jib cranes are often used together with single girder overhead cranes to optimize workshop material flow.

Why Choose NYBON Machinery?

  • Professional engineering team in industrial lifting design.

  • Fast response on drawings, solutions, and technical support.

  • A heavy-duty steel structure ensures a long service life and maximum stability.

  • Global delivery & installation support, including onsite inspection when required.

  • ISO-certified manufacturing, ensuring safety and compliance with international standards.

nybon cranes

Global Crane Solutions

Built to Last

Customized Solutions

From overhead cranes to electric hoists, our products are designed to match your specific lifting requirements.

Reliable Manufacturing

Every crane is produced under strict quality standards, ensuring stable performance and long service life.

Global Service

With decades of export experience, Nybon Machinery provides professional support for clients worldwide.

Frequently Asked Questions (FAQ)

1. Can a jib crane be customized for special workshop layouts?

Yes. NYBON provides fully customized jib cranes, including: Low headroom / high headroom; Extended boom length; Restricted rotation; Mobile base with wheels; Explosion-proof configuration; Stainless steel or anti-corrosion design

2. What rotation angle can a jib crane achieve?

Most free-standing or pillar-mounted jib cranes support 360° rotation. Some models normally offer 180°–270°, but may reach 360° if the building structure allows.

3. What is the lifting capacity range for a jib crane?

NYBON jib cranes cover 0.5 tons to 10 tons for most workshop applications. For special industrial use, capacities can be customized to exceed 20 tons, depending on the design.

4. How do I choose between a chain hoist and a wire rope hoist?

Electric Chain Hoist: Best for light to medium loads, compact structure, low maintenance, ideal for workshop lifting.

Wire Rope Hoist: Suitable for higher speeds, heavier loads, and frequent operation, more durable for industrial duty.

5. What installation foundation is required for a free standing jib crane?

A free-standing (pillar) jib crane requires a reinforced concrete foundation, typically between 500–1200 mm depth, depending on the capacity and boom length.NYBON provides foundation drawings and structural calculations.
