A portable gantry crane is a lightweight, movable lifting structure designed for flexible material handling in workshops, warehouses, and maintenance areas. It usually features an A-frame gantry design, adjustable height, and lockable casters that allow users to move loads safely and efficiently.
Compared with fixed gantry cranes, a mobile gantry crane provides excellent freedom of movement and can be quickly assembled or disassembled, making it ideal for temporary or multi-site lifting tasks. Portable gantry cranes are often used together with chain hoists or wire rope hoists for efficient lifting operations.

Nybon portable gantry cranes are widely used for equipment repair, mechanical assembly, light-duty fabrication, and general workshop lifting. With a capacity range now extended up to 10 tons, this crane is a practical alternative to permanent overhead lifting systems.

Portable Gantry Crane/Mini Crane/Mobile Crane/A-frame Crane

Nybon Heavy Duty Portable Gantry Crane

✅ Rigorous Quality Control: Every NYBON crane undergoes strict testing before shipment to ensure safety and reliability for your workshop, warehouse, or construction site.

NYBON’s portable gantry cranes are designed for versatile material handling. Key features often include:

• Load Capacity: From 500kg to 10 Ton options available.

• Adjustable Height & Span: To fit different workspace requirements.

• Sturdy Steel Construction: For durability and long service life.

• Easy Assembly & Portability: With lockable casters for easy movement.

Portable Gantry Crane

Nybon Mini Crane

Double Hoist Portable Gantry Crane

Double Hoist Portable Gantry Crane

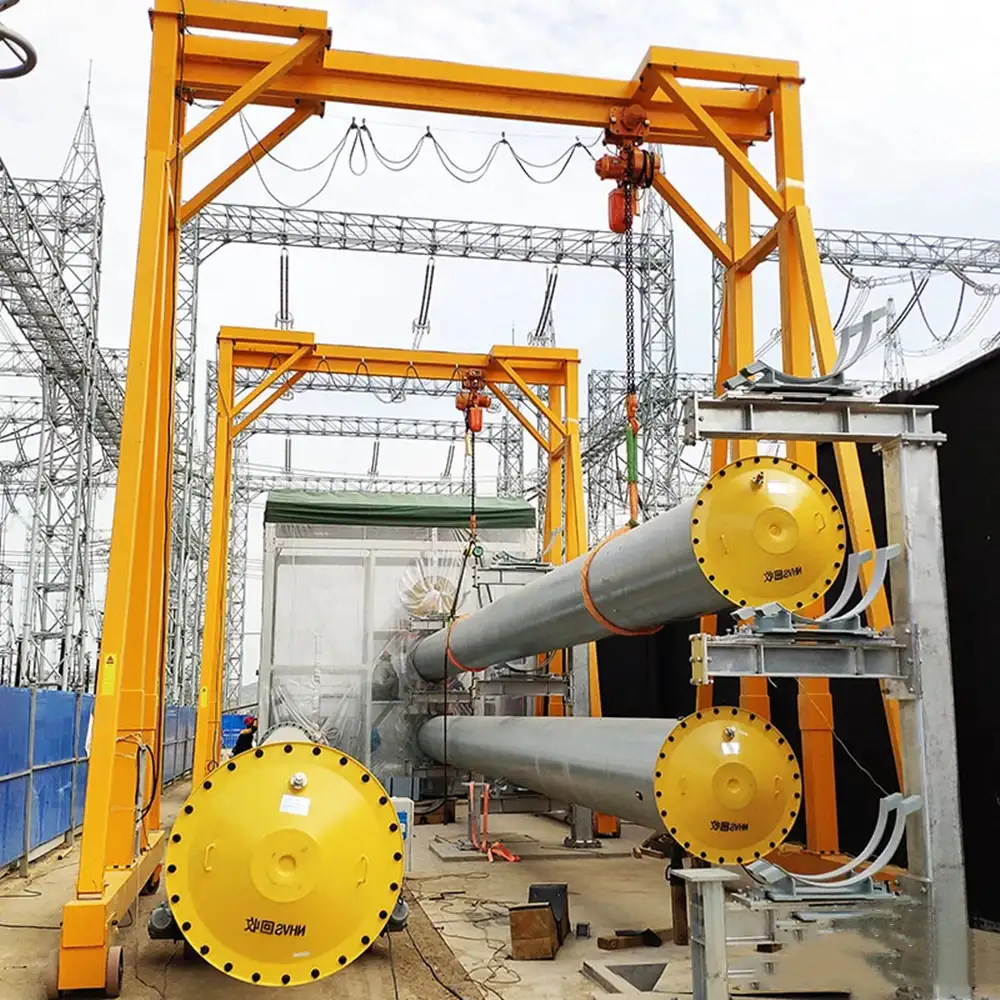

Electric Gantry Crane for Material Handling

Double Hoist Portable Gantry Crane

Customized Portable Gantry Crane Solutions

NYBON offers customized portable gantry crane solutions to meet specific project requirements. Lifting capacity, span, height, mobility options, and hoist type can all be tailored based on your working conditions. We also provide custom gantry cranes, electric hoists, and crane kits for complete lifting solutions.

Technical Parameters (Typical Range)

Model Capacity (t)  Adjustable Height (m) Span Range (m) Frame Type Wheel Type Optional Hoist
PGC-1 1 ton 2.0–3.0 2–4 A-frame PU Casters Manual / Electric Chain Hoist
PGC-2 2 ton 2.5–3.5 3–5 A-frame / Mobile Lockable Casters Chain Hoist / Wire Rope Hoist
PGC-3 3 ton 2.5–4.0 3–6 A-frame Heavy-duty Wheels Electric Hoist
PGC-5 5 ton 3.0–4.5 4–7 Reinforced A-frame Heavy-duty Steel Wheels Electric Hoist
PGC-10 10 ton 3.0–5.0 5–8 Heavy-duty Mobile Frame Industrial Casters Electric Hoist

Loading Capacity, Height, Span, Frame Materials, Wheel Materials, etc, all can be customized according to your needs.

Applications of Portable / Mobile Gantry Crane

Nybon portable gantry crane is ideal for:

  • Workshop maintenance & assembly

  • Mechanical repair stations

  • Light fabrication and welding work

  • Warehouse loading and unloading

  • HVAC and equipment installation

  • Outdoor temporary lifting tasks

  • Replacement of fixed workshop gantry cranes

  • Areas with limited headroom or restricted installation conditions

Optional Configurations

  • Electric chain hoist/wire rope hoist

  • Adjustable span beam

  • Foldable A-frame structure for easy storage

  • Galvanized finish for outdoor use

  • Explosion-proof hoist for chemical & mining industries

  • Height extension kits

  • Rubber, PU, or steel casters depending on flooring type

  • Thanks to its versatile nature, it also serves as an adjustable gantry crane for multiple lifting scenarios.

2Ton Portal Crane
2Ton Portal Crane
2Ton Portal Crane

Key Features of Nybon Portable Gantry Crane

✔ Adjustable A-Frame Structure—Our portable gantry features a robust A-frame gantry crane design, providing stable support while allowing for height adjustment to accommodate various working areas.

✔ Superior Mobility—As a true mobile gantry crane, it can be moved in any direction using heavy-duty casters. Optional locking wheels ensure secure positioning under load.

✔ Easy Assembly & Disassembly—No permanent installation or concrete foundation is required. The entire frame can be set up by two people within a short time.

✔ Extended Capacity – Up to 10 Tons—Supports heavier workshop lifting tasks and can be matched with electric chain hoists or wire rope hoists.

✔ Corrosion-Resistant Finish—Powder-coated or galvanized surface ensures long service life, even in demanding environments.

✔ Cost-Effective Solution—Lower investment cost compared to fixed gantry cranes or overhead crane systems, suitable for small to medium workshops.

In many facilities, portable gantry cranes complement jib cranes and overhead cranes, providing a versatile solution to meet various lifting needs.

Why Choose NYBON Machinery?

  • Experience in heavy crane design and global projects.

  • Engineering team for structural customization.

  • Strict quality control and testing before shipment.

  • Fast technical support and worldwide spare parts.

  • Focus on safe, long-lasting, and cost-effective crane systems.

nybon cranes

Global Crane Solutions

Built to Last

Customized Solutions

From overhead cranes to electric hoists, our products are designed to match your specific lifting requirements.

Reliable Manufacturing

Every crane is produced under strict quality standards, ensuring stable performance and long service life.

Global Service

With decades of export experience, Nybon Machinery provides professional support for clients worldwide.

Frequently Asked Questions (FAQ)

1. Is a portable gantry crane stable for heavy loads?

Yes. The reinforced A-frame structure ensures stability even when handling loads up to 10 tons.

2. Can I use this crane outdoors?

Absolutely. With corrosion-resistant coatings or galvanized frames, it works well in outdoor environments.

3. What is the difference between portable, mobile, and A-frame gantry cranes?

Portable gantry crane: lightweight & easy to move; Mobile gantry crane: optimized casters for frequent movement; A-frame gantry crane: highly stable triangular frame design

Actually, they are the same mini crane equipment; just tell us your needs, and we will work out a suitable solution for you.

4. Does it require a foundation?

No. This crane is designed for direct use on workshop floors.

5. Can I customize the height or span?

Yes. Nybon supports full customization depending on your lifting requirements.
