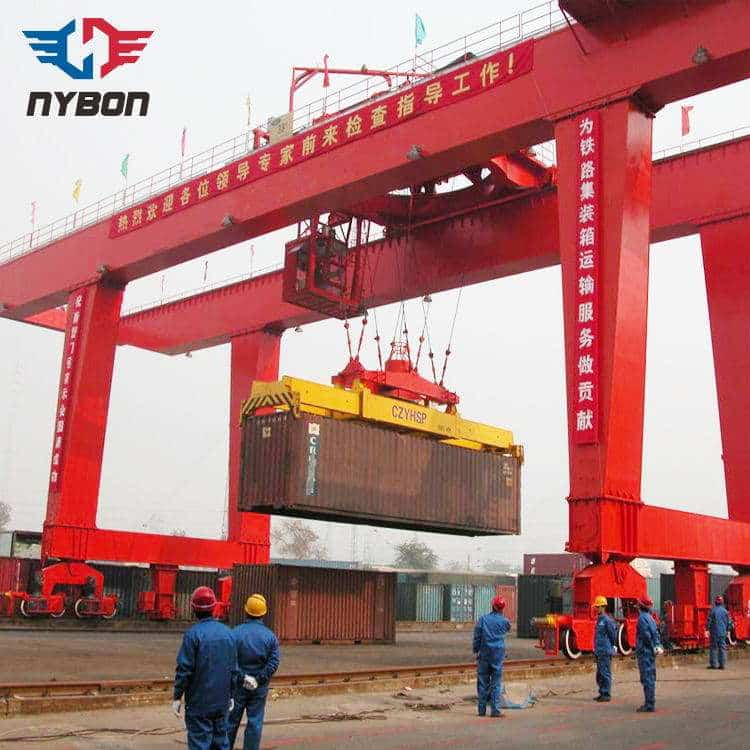

Rail Mounted Gantry Crane: High-Precision Lifting for Yards and Ports
A rail mounted gantry crane (RMG crane) is a type of heavy-duty lifting equipment widely used in container yards, steel stockyards, shipbuilding plants, and hydropower stations. Designed to run on fixed rails, these cranes offer exceptional lifting capacity, stability, and travel distance.
Nybon Machinery provides custom-built RMG cranes to meet your yard’s exact operational requirements.
What Is a Rail Mounted Gantry Crane?
A rail mounted gantry crane is a type of gantry crane that travels on ground-mounted steel rails. The system typically includes:
-
Two rigid legs connected to a double girder bridge
-
A trolley hoist that moves along the bridge
-
Rails embedded in concrete foundations
-
Electric drive systems for lifting and travel
-
Optional operator cabin or remote control
This setup is engineered for long-span, high-precision material handling in fixed work zones.
Key Advantages of Rail Mounted Gantry Cranes
1. High Stability and Accuracy
Because the crane is mounted on tracks, it offers excellent linear travel precision and can handle large loads without sway, making it ideal for delicate or high-value cargo.
2. Long Travel Distance
RMG cranes can travel along hundreds of meters of rail, ideal for large industrial yards, shipyards, or container terminals.
3. Energy-Efficient Operation
Compared to rubber-tyred cranes, rail-mounted systems are more energy-efficient, particularly when powered by busbar or cable festoon systems.
4. High Customization Potential
You can configure:
-
Load capacity (up to 200 tons)
-
Crane span (up to 60 meters)
-
Hoist speed and lifting height
-
Cabin type, automation, anti-collision, and safety features
Typical Applications of RMG Cranes
| Application Area | Purpose |
|---|---|
| Container Terminals | Stack, load, and unload containers |
| Steel Yards | Handle coils, plates, and long beams |
| Shipyards | Move blocks, engines, or hull sections |
| Hydropower Plants | Lift turbines, gates, and equipment |
| Construction Yards | Reposition precast concrete elements |
Technical Specifications (Nybon’s RMG Models)
-
Lifting Capacity: 20T – 200T
-
Span: 18m – 60m
-
Lifting Height: Up to 30 meters
-
Working Class: A5 – A8
-
Trolley Speed: 10–40 m/min
-
Crane Travel Speed: 20–100 m/min
-
Power Source: Cable reel / Busbar / Festoon system
-
Control Mode: Cabin / Remote / Automation-ready
Why Choose Nybon Machinery for Your Rail Mounted Gantry Crane?
-
🏗️ Precision Engineering for Complex Yard Layouts
-
🔧 Fully Customized to Match Operational Load and Track Design
-
🧠 Support for Semi-Automation and Anti-Collision Technology
-
🌍 Global Shipping and On-Site Installation Support
-
🛡️ High Durability, Weather Resistance, and Long Lifespan
Boost Yard Efficiency with a Rail Mounted Gantry Crane
If your site requires long-distance, high-accuracy material handling, the rail mounted gantry crane is an unbeatable choice. With Nybon Machinery’s experience in custom crane manufacturing, you can rely on us for a safe, durable, and efficient RMG crane system that matches your exact project needs.
Frequently Asked Questions
Q1: How is power supplied to a rail mounted gantry crane?
A1: Via cable reels, busbar systems, or cable festoons, depending on the installation length and power needs.
Q2: Can RMG cranes be automated?
A2: Yes, Nybon can provide semi-automated or fully automated control systems with anti-collision, limiters, and zone control.
Q3: How long does installation take?
A3: Typical installation takes 2–6 weeks depending on the site condition and crane size. Nybon offers on-site and remote guidance.
