A Single Girder Overhead Crane is a cost-effective lifting solution widely used in manufacturing factories, assembly lines, warehouses, steel workshops, logistics centers, and equipment maintenance areas. Designed with a single bridge beam and a compact electric hoist, it provides stable performance, easy installation, and long-term reliability for daily material handling tasks. Single girder overhead cranes are commonly equipped with electric hoists or European-type hoists for smooth lifting performance.

NYBON Machinery offers a complete range of single girder overhead cranes, including top-running, underslung, European type (HD), LD type, and various customized special models for different industrial applications.

Types of Single Girder Overhead Cranes

LD Model Single Girder Lifting Overhead Crane

LD Type Single Girder Overhead Crane (Standard Type)

The LD model is the industry’s most popular and cost-effective overhead crane.

  • Uses CD/MD wire rope electric hoist or chain hoist

  • Suitable for light to medium lifting tasks

  • Lifting capacity: 1–20 tons

  • Simple structure and easy installation

  • Widely used in general workshops and warehouses

HD Model 3 Ton Single Girder Overhead Crane with Hoist

HD Type European Single Girder Overhead Crane (Low-Headroom Type)

The HD model follows FEM/DIN standards and provides superior performance.

  • Ultra-low headroom design

  • Smooth operation with frequency inverter

  • Lightweight structure reduces building load

  • High precision and low maintenance cost

  • Suitable for high-end industrial applications

Nybon Single Beam Bridge Crane with Electric Hoist

Top-Running Single Girder Overhead Crane

A top-running crane operates on rails installed on top of the runway beams.
Benefits:

  • Maximizes lifting height

  • Supports longer spans

  • Ideal for heavy-duty industrial environments

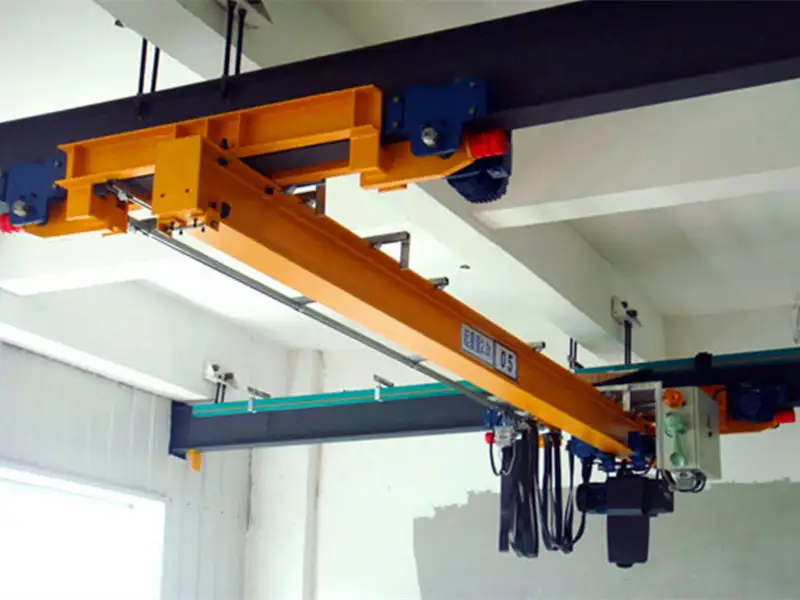

Lx underslung eot crane

LX underslung eot crane

This crane runs on the bottom flange of the runway beam.
Suitable for:

  • Workshops with low headroom

  • Facilities without enough space for a top-running system

  • Lightweight production lines

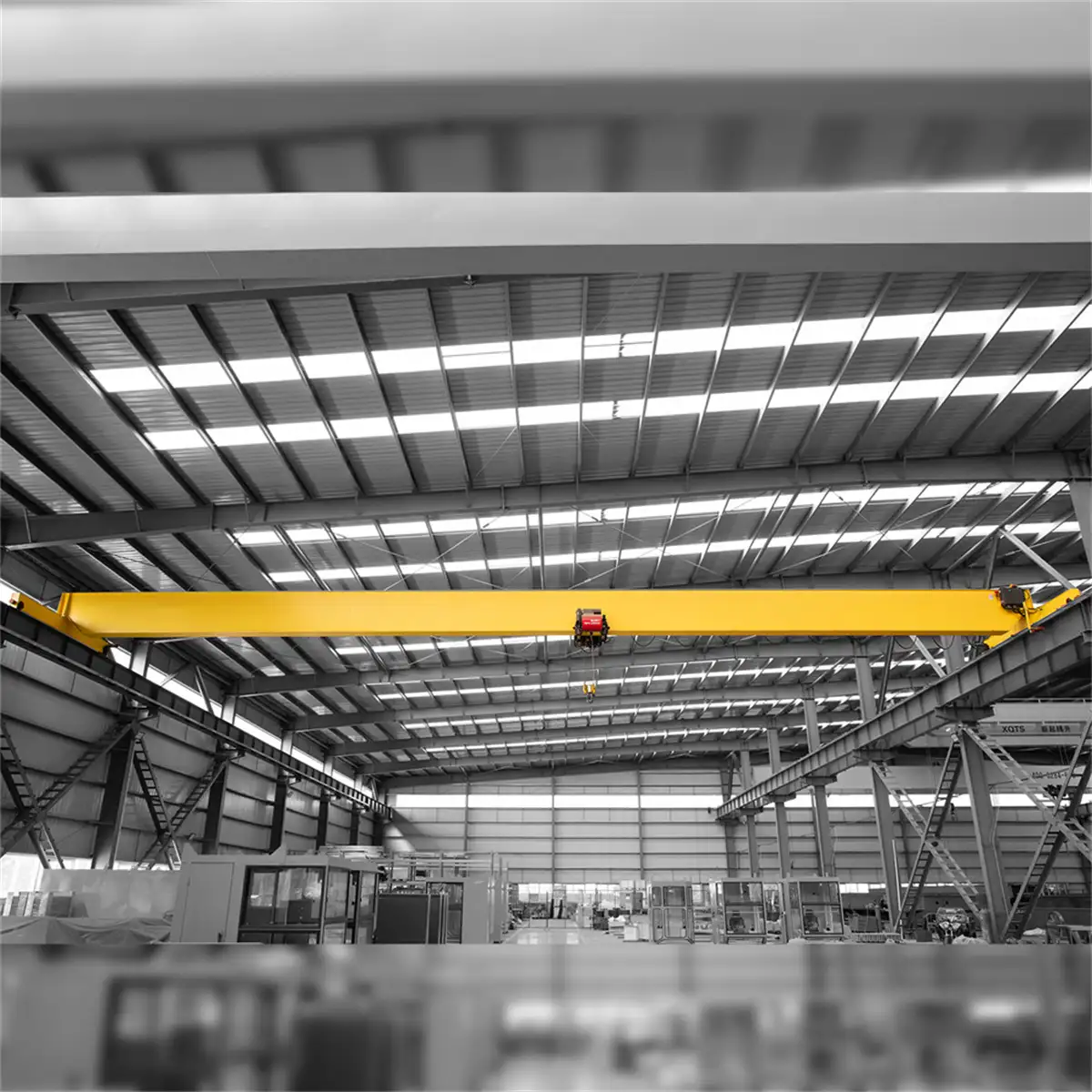

European-style Single-Girder Crane Electric Hoist

Special Single Girder Cranes (Customized Models)

NYBON also provides customized single girder cranes for specific working conditions:

  • Explosion-proof single girder crane (EX type)

  • Metallurgy single girder crane (High-temperature resistant)

  • Insulation type crane (For electrolytic aluminum plants)

  • Anti-corrosion crane (Chemical plants)

  • Cleanroom single girder crane

  • In many factories, single girder overhead cranes work alongside double girder overhead cranes for different lifting requirements.

Technical Parameters (Typical Range)

Lifting Capacity1–32 ton(customizable)
Span7.5–30 meters (customizable)
Lifting Height6–30 meters
Working ClassA3–A5 / FEM 1 Am–2m
Power Supply380V 50Hz 3-Phase (customizable)
Lifting MechanismWire rope or chain hoist
Control ModePendant / Radio Remote / Cabin
SpeedSingle speed / Dual speed / VFD control

Customized Single Girder Overhead Crane Solutions

NYBON provides customized single girder overhead crane solutions to match specific workshop layouts and operational needs. Span, lifting height, hoist type, and control methods can all be adjusted based on customer requirements. We also offer overhead crane systems, electric hoists, and crane components for complete lifting solutions.

Key Features of Our Single Girder Overhead Cranes

  • High structural strength with optimized design

  • Smooth and stable operation with low noise

  • Lightweight for easy installation

  • Precise positioning and long service life

  • Optional frequency inverter for soft start & stop

  • Energy-efficient and low maintenance cost

  • Customized span, height, lifting speed, and control system available

  • Available with pendant control, remote control, or cabin operation

Applications of Single Girder Overhead Cranes

  • Manufacturing workshops

  • Machinery assembly lines

  • Steel structure fabrication workshops

  • Warehouses & logistics centers

  • Hydropower plants

  • Mining industry

  • Chemical and processing plants

  • Mechanical maintenance facilities

Why Choose NYBON Machinery?

  • 15+ years of experience in industrial crane manufacturing

  • Strict quality control and a professional engineering team

  • OEM and customized services available

  • Competitive price with reliable performance

  • Fast delivery and 24/7 after-sales support

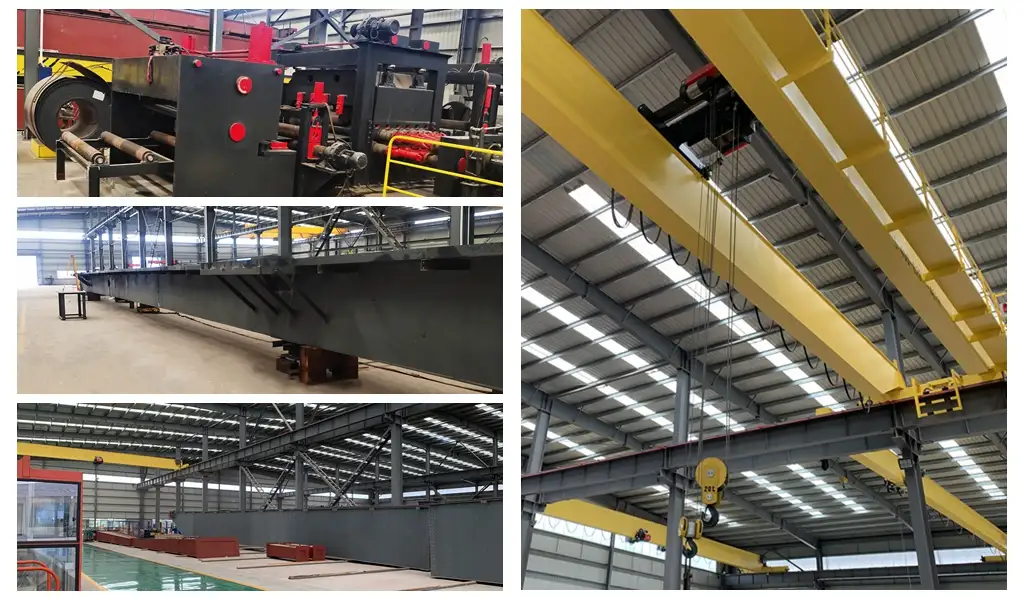

nybon cranes

Global Crane Solutions

Built to Last

Customized Solutions

From overhead cranes to electric hoists, our products are designed to match your specific lifting requirements.

Reliable Manufacturing

Every crane is produced under strict quality standards, ensuring stable performance and long service life.

Global Service

With decades of export experience, Nybon Machinery provides professional support for clients worldwide.

Frequently Asked Questions (FAQ)

1. What is the capacity range of a single girder overhead crane

Typically 1–32 tons, but customized solutions are available

2. Is a single girder crane suitable for heavy-duty lifting

For heavy-duty lifting above 32 tons, a double girder overhead crane is recommended.

3. What is the difference between LD and HD types?

LD is a standard type, cost-effective.

HD is a European type with a low-headroom design and smoother operation.

4. What information is needed for a quotation?

Please provide lifting capacity, span, lifting height, working environment, and control method

5. Do you provide installation and technical support?

Yes, we offer on-site installation guidance, online support, and full technical documentation
