A wall-mounted jib crane, also known as a wall bracket jib crane or cantilever jib crane, is an efficient lifting solution for workshops, warehouses, and industrial production lines. Instead of installing a column on the floor, the crane is mounted directly to an existing building structure—such as a wall, pillar, or steel column—saving valuable floor space. These cranes are widely used for workstation lifting, CNC loading/unloading, assembly lines, and material transfer along walls and production cells.

NYBON provides three main types of wall-mounted jib cranes:

  • Fixed wall-mounted jib crane (with adjustable rotation angles)

  • Wall traveling jib crane (mounted on a running beam/track)

  • Customized wall-mounted jib cranes for special applications

Types of Wall Mounted Jib Cranes

mobile jib crane on wheels

Fixed Wall Mounted Jib Crane (Cantilever Type)

This type is mounted directly on the workshop wall or existing building pillar. This is the most common and cost-effective type of wall-mounted jib crane.Also known as a cantilever wall jib crane, wall bracket jib crane, or column-wall-mounted jib crane.

  • Installed on the wall or column without occupying floor space

  • Rotation angle typically 180° or 270°, customizable to 300° depending on structure

  • Ideal for lifting capacities from 100 kg to 5 tons

  • Compatible with electric chain hoist or wire rope hoist

  • Perfect for fixed workstations, CNC machines, workbenches, welding areas, and assembly stations

Wall-mounted travelling Jib Crane

Wall Traveling Jib Crane (Sliding Along Wall Track)

A wall traveling jib crane, also called a wall traveling cantilever crane or wall-running jib crane, travels horizontally along a dedicated wall-mounted track or I-beam, allowing long-distance material transfer.This type is especially useful in machining workshops, automotive plants, and fabrication halls.

  • Crane beam travels along a wall-mounted runway

  • Ideal for production lines requiring linear material handling. Greatly improves workflow efficiency along assembly lines

  • Lifting capacity 250 kg to 10 tons

  • Travel length can range from 5 meters to over 50 meters

  • Does not interfere with overhead crane operations

Customized Wall Mounted Jib Crane

NYBON specializes in tailor-made wall mounted jib cranes designed for special industrial requirements and unique workshop layouts.

Custom Options Include:

  • Non-standard boom length (2–10 meters)

  • High or low headroom cantilever design

  • Motorized slewing mechanism

  • Longer travel beams for wall traveling models

  • Explosion-proof configuration for hazardous environments

  • Stainless steel or anti-corrosion designs

  • Heavy-duty hoist systems for frequent operation

Custom jib cranes ensure optimal lifting performance based on your workflow, installation constraints, and production needs.

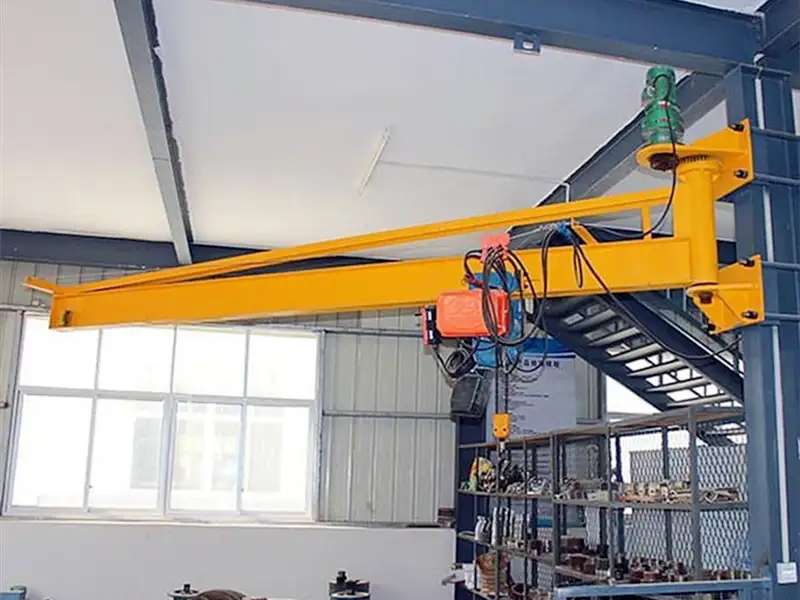

Wall Swing Jib Crane

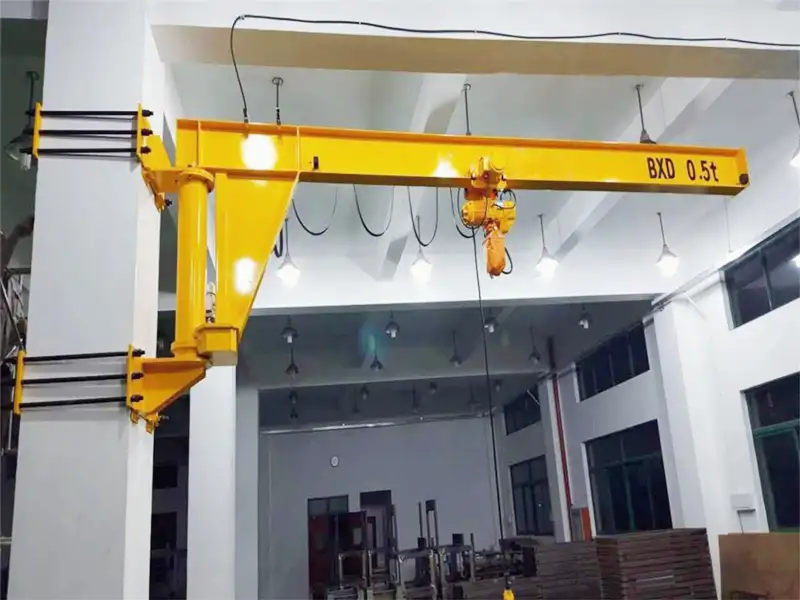

Wall Cantilever Jib Crane
Wall Boom Crane

Wall-Mounted Jib Crane Specifications

 Item  Specification Range
Capacity  0.5 ton – 10 tons (custom up to 20 tons)
Boom Length 2 m – 8 m
Rotation Angle 180° / 270° / 300° (depending on mounting surface)
Travel Length (Wall Traveling Type) 5 m – 50+ m
Hoist Type Electric Chain Hoist / Wire Rope Hoist
Power Supply 380V / 400V / 415V / 440V
Mounting Style Wall bracket / Column-mounted / Wall-traveling rail
Application Area  Workshops, assembly lines, machining centers

Customization: All crane systems can be designed based on customer requirements, working environment, and material type.

Advantages of Wall Mounted Jib Cranes

  • Zero floor space required – all structures mounted on walls or building columns

  • Cost-effective installation compared to free-standing jib cranes

  • Smooth rotation and easy load handling with minimal operator effort

  • High efficiency for repetitive lifting tasks along the wall

  • Flexible design with fixed or traveling options

  • Compatible with existing workshop structure

  • Ideal for workstation lifting and integration with production cells

Applications

  • CNC machining and tool loading

  • Assembly and processing lines

  • Welding stations and fabrication workshops

  • Maintenance and repair areas

  • Packing and palletizing sections

  • Light and medium-duty industrial lifting

  • Production lines requiring linear material handling

  • Workshops with limited floor space

Why Choose NYBON Machinery?

  • Professional engineering team in industrial lifting design.

  • Fast response on drawings, solutions, and technical support.

  • A heavy-duty steel structure ensures a long service life and maximum stability.

  • Global delivery & installation support, including onsite inspection when required.

  • ISO-certified manufacturing, ensuring safety and compliance with international standards.

nybon cranes

Global Crane Solutions

Built to Last

Customized Solutions

From overhead cranes to electric hoists, our products are designed to match your specific lifting requirements.

Reliable Manufacturing

Every crane is produced under strict quality standards, ensuring stable performance and long service life.

Global Service

With decades of export experience, Nybon Machinery provides professional support for clients worldwide.

FAQ – Wall Mounted & Wall Traveling Jib Cranes

1. What is the difference between a fixed wall mounted jib crane and a wall traveling jib crane?

A fixed wall-mounted jib crane is installed on a wall or column and rotates within a fixed area. A wall-traveling jib crane, on the other hand, moves along a horizontal wall-mounted track, covering much longer distances. Both save floor space, but traveling models serve longer production lines.

2. Can a wall mounted jib crane rotate 360 degrees?

Wall-mounted models usually rotate-180° or 200° when mounted on a flat wall; 270° or 300° when mounted on a pillar; Full 360° is not possible unless attached to a special structural column designed for full rotation.

3. What wall conditions are required for installation?

The wall or pillar must have adequate load-bearing capacity.NYBON engineers can evaluate and provide structural reinforcement advice if needed.

4. Can the jib crane be installed outdoors?

Yes. Outdoor versions can be built with: Hot-dip galvanization, Weatherproof hoists, Anti-corrosion paint systems, Stainless steel components

5. What hoist options are available?

Electric chain hoist (most common), Low-headroom chain hoist, Wire rope hoist (for heavier loads), Manual chain hoist (for occasional use)

6. Can wall mounted jib cranes be customized?

Absolutely. NYBON offers full customization, including:

Boom length, Slewing angle, Travel distance, Hoist type, Mounting style, Explosion-proof and stainless-steel versions
